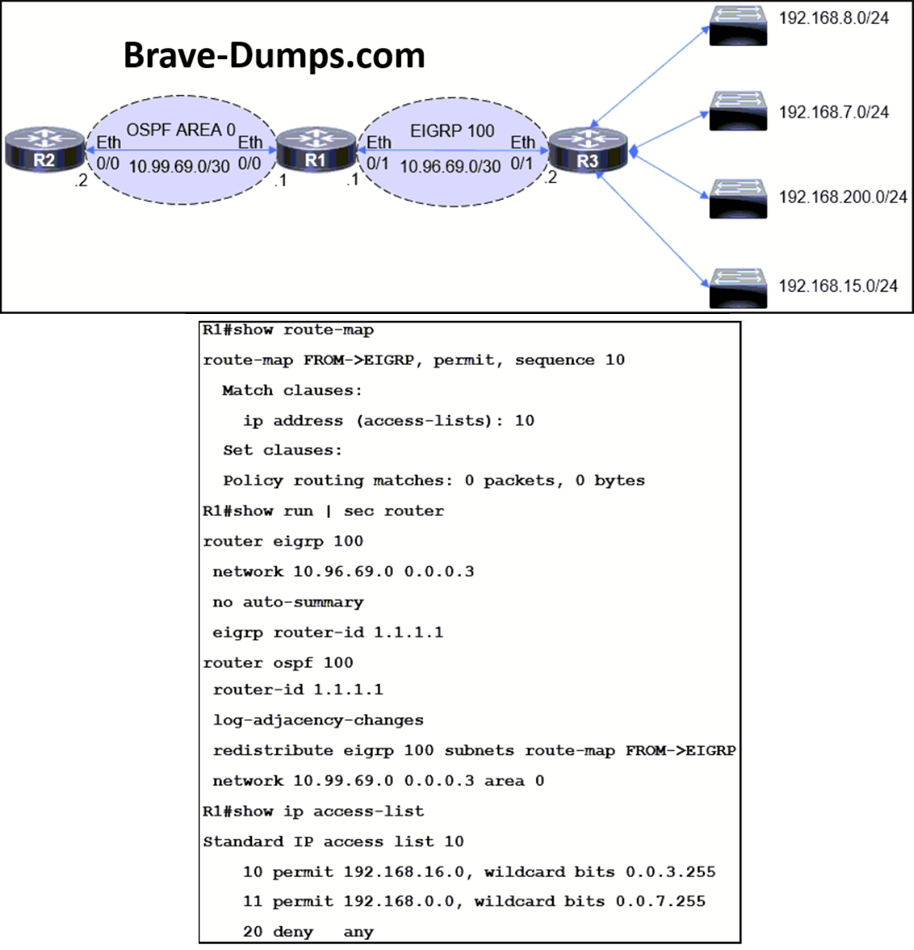

Refer to the exhibit. The engineer configured route redistribution in the network but soon received reports that R2 cannot access 192.168.7.0/24 and 192.168.15.0/24 subnets. Which configuration resolves the issue? (Choose one answer)

  • A. R1(config)#ip access-list standard 10
    R1(config-std-nacl)#no 10 permit
    R1(config-std-nacl)#no 11 permit
    R1(config-std-nacl)#10 permit 192.168.0.0 0.0.3.255
    R1(config-std-nacl)#11 permit 192.168.8.0 0.0.3.255
  • B. R1(config)#ip access-list standard 10
    R1(config-std-nacl)#no 10 permit
    R1(config-std-nacl)#no 11 permit
    R1(config-std-nacl)#10 permit 192.168.4.0 0.0.3.255
    R1(config-std-nacl)#11 permit 192.168.12.0 0.0.3.255
  • C. R1(config)#ip access-list standard 10
    R1(config-std-nacl)#no 10 permit
    R1(config-std-nacl)#no 11 permit
    R1(config-std-nacl)#10 permit 192.168.0.0 0.0.3.255
    R1(config-std-nacl)#11 permit 192.168.8.0 0.0.7.255
  • D. R1(config)#ip access-list standard 10
    R1(config-std-nacl)#no 10 permit
    R1(config-std-nacl)#no 11 permit
    R1(config-std-nacl)#10 permit 192.168.0.0 0.0.7.255
    R1(config-std-nacl)#11 permit 192.168.8.0 0.0.3.255
Correct Answer: B

Brave-Dump Clients Votes

D 100%

Comments



Anonymous User 2026-06-04 17:38:41

Selected Answers: D


I do not understand why the question is saying R2 cannot access 192.168.7.0/24. The standard IP access list 10 include 11 permit 192.168.0.0, wildcard bits 0.0.7.255 should covers 192.168.7.0/24.
  • Brave-Dumps.com Admin 2026-06-05 01:04:57
    We edited the question to make it clearer, you are right. Based on the current ACL, 192.168.7.0/24 is already matched by 192.168.0.0 0.0.7.255, so R2 should be able to reach it. The real missing subnet is 192.168.15.0/24. The question appears to have an inconsistency, but among the given options, B is the expected answer because it matches both 192.168.7.0/24 and 192.168.15.0/24.

Brave-Dumps.com Admin 2026-06-05 01:05:12

Selected Answers: No answers selected


B is the correct one
