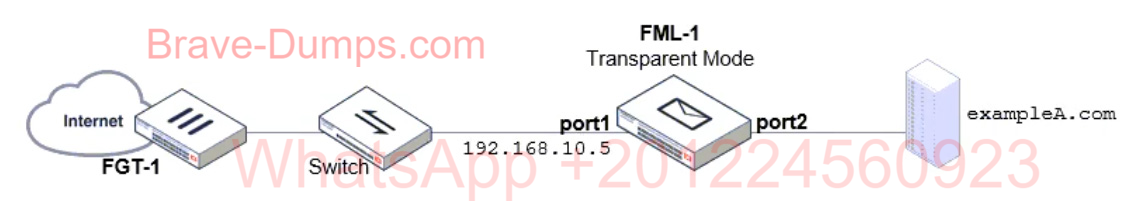

Refer to the exhibit, which displays a topology diagram of FortiMail configured in transparent mode in front of a corporate mail server. Which two statements correctly describe the built-in bridge functionality on a FortiMail device running in transparent mode? (Choose two answers)

A. Any bridge member interface can be removed from the bridge and configured as a routed interface.
B. All bridge member interfaces belong to the same subnet as the management IP.
C. The management IP is permanently tied to port1, and port1 cannot be removed from the bridge.
D. If port1 is required to process SMTP traffic, it must be configured as a routed interface.

Correct Answer: B,C

Brave-Dump Clients Votes

BC 100%

Comments

Nathan OVIDE 2025-08-14 17:07:52

Selected Answers: B, C

Study Guide Page 435-436 :
By default, all interfaces are configured as a bridge in transparent mode. You must assign the management IP
statically to port1. The management IP is used for all management-related traffic as well as FortiGuard
communication. Bridge member interfaces must belong to the same subnet as the management IP of port1, if
assigned an IP address.
You can remove any interface, except port1, from the built-in bridge.
