NSE 6 – SD-WAN 7.6 Enterprise Administrator Exam Materials-Question 27 Discussion

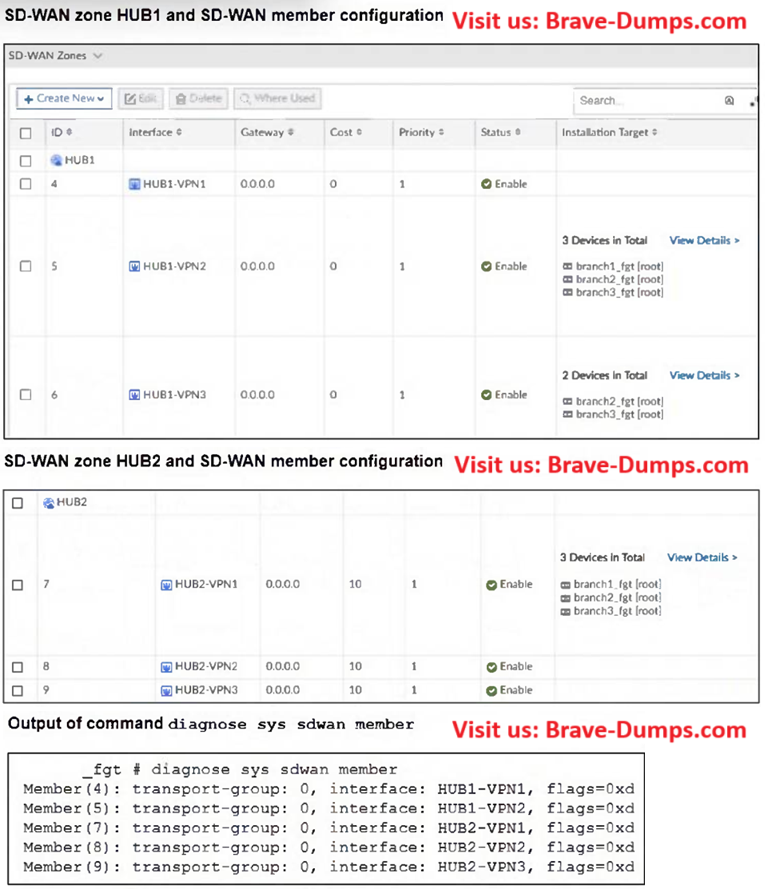

Refer to the exhibits. The exhibits show an SD-WAN zone HUB1 and SD-WAN member configuration from an SD-WAN template and the output of command diagnose sys sdwan member collected on a FortiGate device. Which statement best describes what the diagnose output shows? (Choose one answer)

  • A. The diagnose output was collected on the device branch2_fgt
  • B. The diagnose output shows that HUB1-VPN1 and all HUBx-VPNy members are dead
  • C. The diagnose output does not correspond to a device configured with the SD-WAN template shown in the exhibit
  • D. The diagnose output was collected on the device branch1_fgt
Correct Answer: D

Brave-Dump Clients Votes

D 66.67%
C 33.33%

Comments



Anonymous User 2026-01-26 17:16:59

Selected Answers: C


why D ? there is no HUB1-VPN3 in branch1_fgt in the configuration

Anonymous User 2026-02-02 06:15:50

Selected Answers: D


D - To define an installation target, you can select device groups or individual devices. Leave the
Installation Target field empty to install the member on every device. Page: 19 (SD-WAN 7.6
Enterprise Administrator Study Guide)

The members will be installed on all devices the Installation Target is empty
The members will be installed on every device specified under Installation Target
Branch1_fgt is not specified under HUB1-VPN3

Anonymous User 2026-03-09 12:21:22

Selected Answers: D


HUB1-VPN1 installed on branch1_fgt, branch2_fgt, branch3_fgt
HUB1-VPN2 installed on branch1_fgt, branch2_fgt, branch3_fgt
HUB1-VPN3 installed on branch2_fgt, branch3_fgt

Diagnose sys sdwan member output:
Member 4: HUB1-VPN1
Member 5: HUB1-VPN2
Member 7: HUB2-VPN1
Member 8: HUB2-VPN2
Member 9: HUB2-VPN3

We are missing HUB1-VPN3, which only branch1_fgt does not have, hence diagnose was collected on this device.
