View all questions & answers for the NSE 5 - FortiSwitch 7.6 Administrator Exam Materials exam


Question 14 Discussion

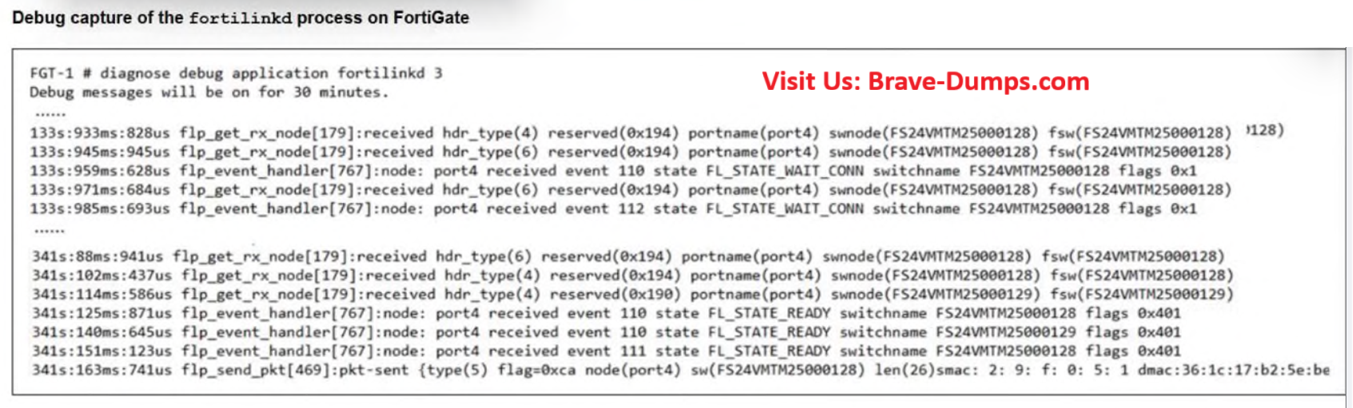

Refer to the exhibit. A periodic heartbeat message sent from a managed FortiSwitch and corresponding acknowledgments from FortiGate is shown. What does this behavior indicate? (Choose one answer)

  • A. The FortiLink connection between FortiGate and FortiSwitch is healthy and active.
  • B. FortiGate is unable to establish a FortiLink session with FortiSwitch.
  • C. FortiSwitch is expecting an authorization from FortiGate.
  • D. FortiSwitch has not been authorized yet.
Correct Answer: A

Brave-Dump Clients Votes

A 100%

Comments



javaughn Bryan 2025-12-08 20:17:21

Selected Answers: A


A is correct.

You can see periodic heartbeats and matching ACKs (states like FL_STATE_READY and pkt-sent), which means the switch and FortiGate are exchanging keep-alive messages — aka a working FortiLink session.

After you authorize a switch and it comes online, the switch starts sending FortiLink heartbeats to FortiGate every 3 seconds. FortiGate then acknowledges the heartbeats by sending a reply to the switch. The debug output for the fortilinkd process will also show these heartbeats.
PAGE: 399 | FORTISWITCH 7.6 ADMIN GUIDE
