NSE 6 - Network Security 7.6 Support Engineer Materials-Question 45 Discussion

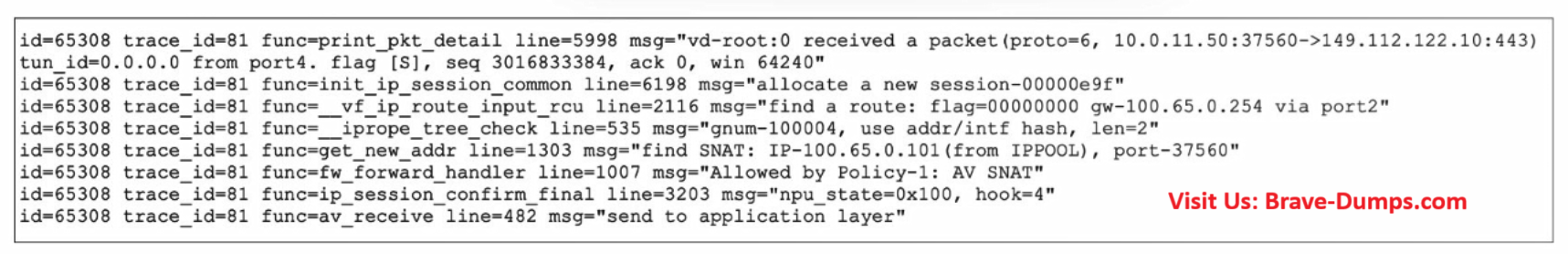

Refer to the exhibit. Which two observations can you make about the web filter traffic captured using the flow tool? (Choose two answers)

  • A. The web filter profile is configured with proxy-based inspection mode.
  • B. The HTTPS port is mapped to 443 in the SSL/SSH Inspection Profile.
  • C. The session is offloaded to the NPU.
  • D. The firewall policy is configured with proxy-based inspection mode.
Correct Answer: C,D

Brave-Dump Clients Votes

AD 60%
AC 20%
CD 20%

Comments



gerardo echeto 2026-01-07 21:12:55

Selected Answers: A, D


Why are A and D correct?

A (Web Filter in Proxy mode): The line `msg="send to application layer"` is irrefutable proof. Only when a profile (like the Web Filter) is in Proxy mode is traffic sent to the "Application Layer" (the WAD daemon).

D (Firewall Policy in Proxy mode): In current versions of FortiOS, for traffic to be sent to the application layer in this way, the firewall policy must be configured in Proxy Inspection Mode.

Why is C incorrect (even though it shows 0x100)?

Proxy-based = CPU.

Flow-based = NPU (Offload).

The value `npu_state=0x100` in this debug is a "false positive" for actual offload. It indicates that the software identified the session, but the subsequent `send to application layer` message overrides any hardware acceleration. The traffic remains on the CPU because the NPU cannot process proxies.

James 2026-01-24 23:58:16

Selected Answers: A, D


https://community.fortinet.com/t5/FortiGate/Technical-Tip-Reasons-why-the-session-is-not-offloaded-to-NPU/ta-p/336627
Reasons why the session is not offloaded to NPU
2. The firewall policy includes proxy-based security profiles.
3. Accepted by firewall policies that include proxy-based virus scanning, proxy-based web filtering, DNS filtering, DLP, Anti-Spam, VoIP, ICAP, Web Application Firewall, or Proxy options.

Mehdi 2026-02-12 18:22:19

Selected Answers: A, D


msg="send to application layer" this is proxy based inspection , for flow based you'd see send to ips so D is correct

Proxy-based inspection is required for certain web filter features (e.g., full URL rewriting, safe search enforcement in some modes), and the debug path confirms proxy handling so A

C : Incorrect because "send to application layer" means the traffic is processed by the proxy daemon (WAD), which runs on CPU

Mehdi 2026-02-16 12:34:39

Selected Answers: A, C


A : inspection mode (proxy-based vs. flow-based) is configured at the security profile level

C: If it were not offloaded, the trace would typically show npu state=0x0 (or 0x0 0x0), often with a no_ofld_reason

Anonymous User 2026-04-06 04:30:13

Selected Answers: C, D


Option C

npu_state=0x100
This indicates the session is offloaded to the NP (Network Processor)

Option D

send to application layer
This is the key giveaway
Traffic is being forwarded to the application layer (proxy)

👉 This only happens when:

Proxy-based inspection mode is enabled on the firewall policy

✔ In flow-based mode:

Traffic stays in kernel fast path
You would NOT see “send to application layer”
