Question 90 Discussion

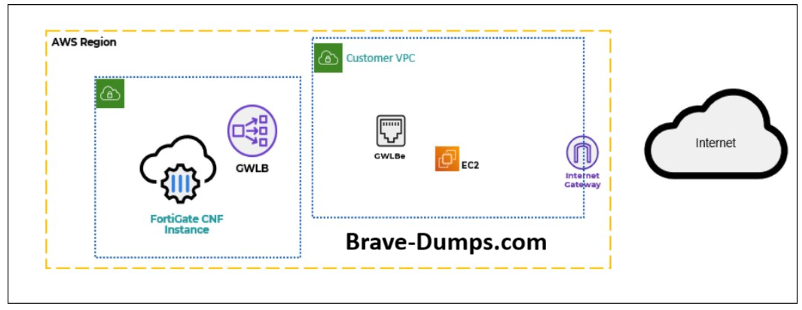

Refer to the exhibit. You deployed a FortiGate Cloud-Native Firewall (CNF) in AWS for FortiGate CNF policy enforcement for EC2 instance traffic. Which path does the EC2 traffic take from the EC2 instance to the internet? (Choose one answer)

  • A. EC2 instance → internet gateway (IGW) → gateway load balancer (GWLB) → FortiGate CNF → internet
  • B. EC2 instance → GWLB endpoint (GWLBe) → FortiGate CNF → IGW → internet
  • C. EC2 instance → FortiGate CNF → GWLB → GWLBe → IGW → internet
  • D. EC2 instance → GWLBe → FortiGate CNF → GWLBe → IGW → internet
Correct Answer: D

Brave-Dump Clients Votes

D 100%

Comments



Brave-Dumps Admin 2025-10-20 20:30:16

Selected Answers: D


I see it is D what do you see?

Nick 2025-10-21 13:42:37

Selected Answers: D


D is correct

yutsu 2025-11-18 12:35:05

Selected Answers: D


Is this question part of the NSE4 exam ???!!!!
  • Brave-Dumps Admin 2025-11-18 17:00:18
    Yes dear, some new topics added to fortiOS 7.6 Study Guide (FortiGate Cloud and SASE)

Vic Geek 2025-12-20 07:14:06

Selected Answers: D


7.6 Study Guide Page 527
"The following steps outline how FortiGate CNF works with AWS:

1. FortiGate CNF creates a network interface (a GWLB endpoint or a GWLBe in your VPC) in your protected networks.

2. Traffic in your protected VPCs is routed to the relevant GWLBe.

3. Traffic is forwarded to the CNF service to enforce security policies.

4. If traffic is not blocked, it is sent back to the GWLBe it was received from.

5. Traffic passes out through the internet gateway."
