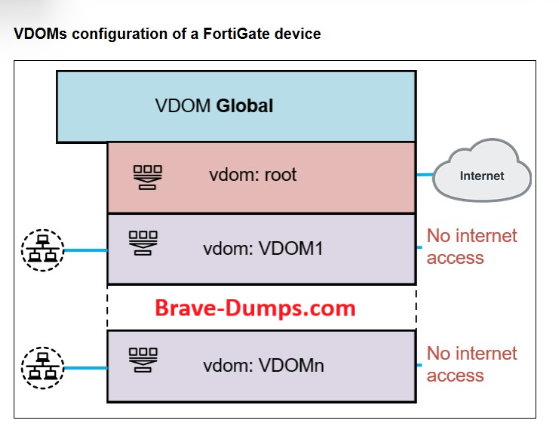

Refer to the exhibit. A FortiGate segmented into VDOMs is shown. You must ensure effective and accelerated internet access for all of the VDOMs in this enterprise network. How can you achieve this? (Choose one answer)

A. Connect a physical interface from each VDOM to the root VDOM.
B. Create VDOM links.
C. Configure network processing unit (NPU) vlinks.
D. Create VLANs over network processing unit (NPU) vlinks.

Correct Answer: C

Brave-Dump Clients Votes

D 100%

Comments

Capi 2025-12-18 21:05:53

Selected Answers: D

C could be correct in the case of having 2 VLANS. But in this example there is VDOM N so multiple vdom. SO the 2 npu vlinks that are available will be able to connect 2 vdoms but no more than that.
D is the correct answer because you can use VLAN over npu links to create up to 4094 VLAN npu vlinks. You just have to create 2 VLAN attached to npu0 and npu1 with the same ID and put each one in a vdom.

Capi 2025-12-18 21:06:33
Correction: C could be correct in the case of having 2 VDOMs....

Adam 2026-01-20 04:28:56

Selected Answers: D

From Study Guide:
By default, NP processors have VDOM links and they are all assigned to the VDOM root. To offload the traffic between two VDOMs, you must assign one VDOM link to one VDOM and the other VDOM link to the other VDOM. The inter-VDOM traffic is then accelerated through the NP, offloading the CPU.

Use Case - VLAN Over NPU VDOM Link
VLANs allow you to create more accelerated inter-VDOM links
The number of VDOM links per NP is limited, but you can add VLAN interfaces to NPU VDOM link interfaces to create additional accelerated links between VDOMs.

A is wrong because it's not physical interface
B is wrong because it's not accelerated
C is wrong because it's limited with each VDOM link offloading traffic between two VDOMs and question mentions "all of the VDOMs in this enterprise network" and exhibit shows unknown number of VDOMs
D is correct as per Study Guide
