Question 56 Discussion

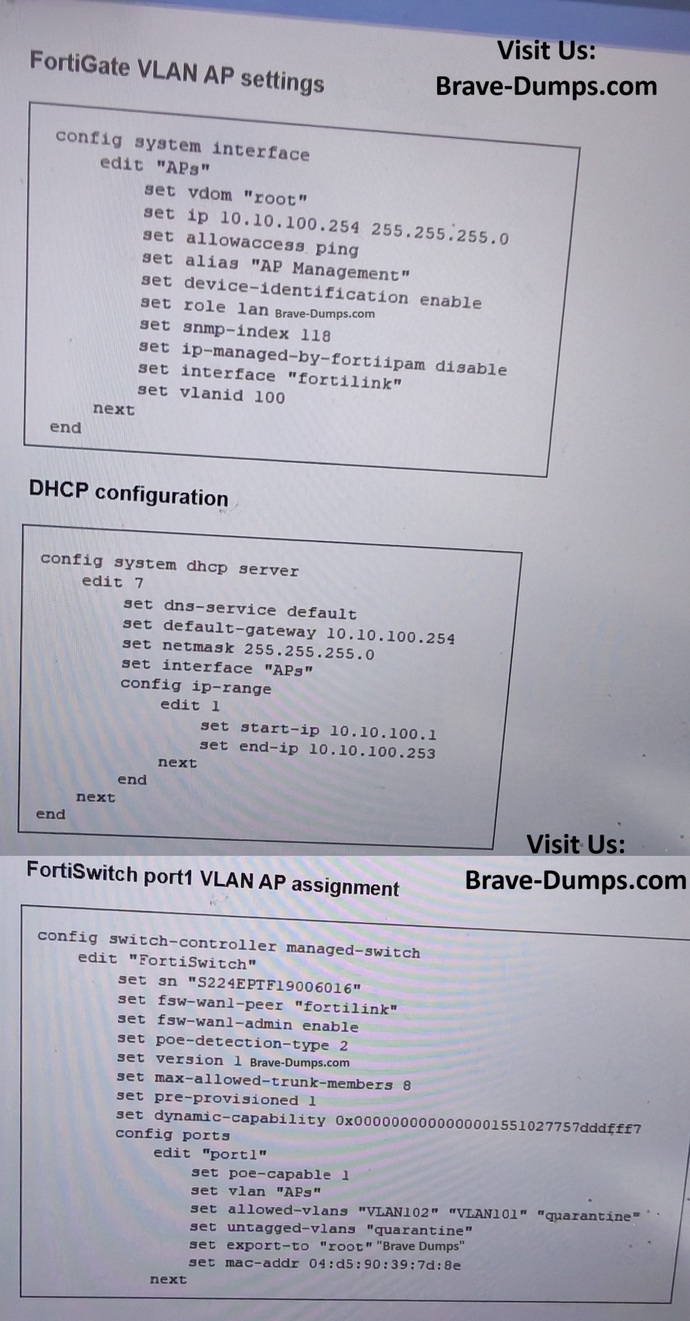

Refer to the exhibits. A FortiSwitch is successfully managed by a FortiGate. FortiAP is connected to port1 of the managed FortiSwitch. On FortiGate, the VLAN AP is configured to detect and manage FortiAP, along with a DHCP server for the VLAN AP. Additionally, the VLAN AP is assigned to port1 of FortiSwitch. However, FortiGate is unable to detect or manage FortiAP. Which FortiGate misconfiguration is preventing the detection of FortiAP? (Choose one answer)

  • A. The FortiAP firmware is incompatible with the FortiGate firmware version.
  • B. Security Fabric is disabled in the administrative access options of the VLAN.
  • C. The CAPWAP ports (UDP 5246 and 5247) are not open on FortiGate.
  • D. The VLAN is not tagged correctly on the FortiSwitch uplink port.
Correct Answer: B

Brave-Dump Clients Votes

B 100%

Comments



Plamen 2025-11-30 16:14:11

Selected Answers: B


The native VLAN is quarantine which by default has the Security Fabric Connector disabled. CAPWAP and FortiTelemetry are part of the Security Fabric Connector and it must be enabled under the quarantine VLAN in order to establish connection.
  • Brave-Dumps Admin 2025-11-30 20:07:06
    Thank you
