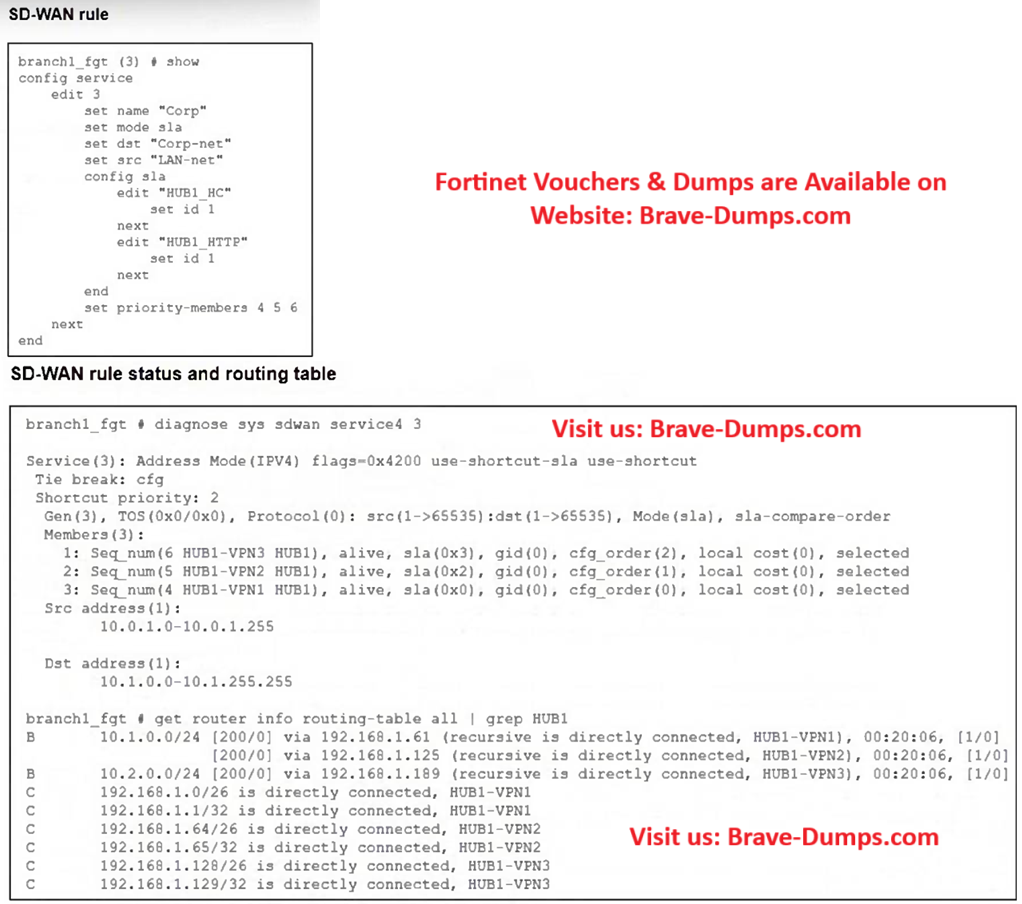

Refer to the exhibits, which show the configuration of an SD-WAN rule and the corresponding rule status and routing table. The administrator wants to understand the expected behavior for traffic matching the SD-WAN rule. Based on the exhibits, what can the administrator expect for traffic matching the SD-WAN rule? (Choose one answer)

A. The traffic will be routed over HUB1-VPN3.
B. The traffic will be routed over HUB1-VPN2.
C. The traffic will be routed over HUB1-VPN1.
D. The traffic will be load balanced across all three overlays.

Correct Answer: B

Brave-Dump Clients Votes

B 80%

C 20%

Comments

michael 2025-07-06 00:58:57

Selected Answers: B

based on Routing B C options are correct. Based on the selected order HUB1-VPN2 is second in the sla_map. Why answer would be C?

Pavol KUCHAR 2025-07-12 15:24:41

Selected Answers: B

"HUB1-VPN1 is showing as the first record in the routing table" is irrelevant. we take into account sla target map, HUB1-VPN3 passed 2 target sla target, HUB1-VPN2 passed one of sla targets and HUB1-VPN1 none. But because HUB1-VPN3 doesn't have valid route to 10.1.0.0/24 the this member is skipped to next which is HUB1-VPN2. What u think guys ?

Elrasheed 2025-07-20 21:50:15

Selected Answers: C

Tie break is cfg since all members met the sla

Elrasheed 2025-07-26 13:06:14
I changed my mind.. B is correct.

Elrasheed 2025-07-26 13:07:09

Selected Answers: B

B is Correct

Jonathan 2025-08-12 04:15:39

Selected Answers: B

Guys i think below is a breakdown to what i see

According to SLA servers configured HUB1-VPN3 is the best because it passed 2 targets out of 3 Noting that HUB1-VPN2 only passed 1 target out of two,

But the reason that HUB1-VPN3 is not selected is because it does not have any valid route to 10.1.0.0/24, accordingly skipped and HUB1-VPN2 is selected
