Question 44 Discussion

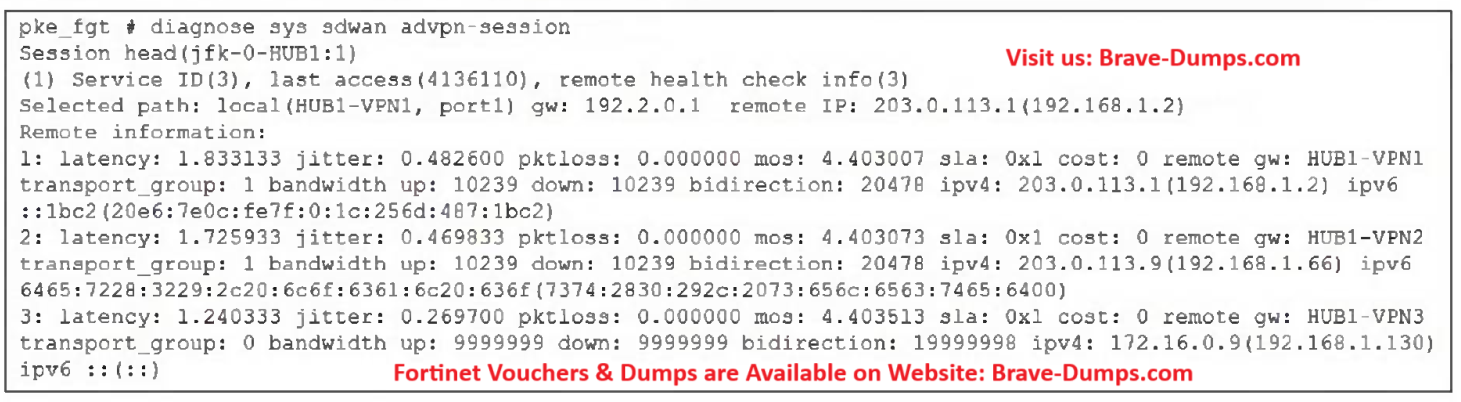

Refer to the exhibit that shows a diagnose output on FortiGate. Based on the output shown in the exhibit, what can you say about the device role and how it handles health checks? (Choose one answer)

  • A. The device is a spoke. It receives health-check measures for the tunnels of another spoke.
  • B. The device is a hub. It receives embedded health-check measures for each tunnel from the spoke.
  • C. The device is a spoke. It provides embedded health-check measures for each tunnel to the hub.
  • D. The device is a hub. It receives health-check measures for the tunnels of a spoke.
Correct Answer: A

Brave-Dump Clients Votes

A 50%
B 50%

Comments



michael 2025-07-05 19:06:03

Selected Answers: A


As per FCSS - SD-WAN 7.4 Architect Study Guide page: 383

Jeffrey 2025-08-12 14:30:16

Selected Answers: B


Sshould it not be B? Spokes do not recieve other spoke measurements right?

Brave-Dumps Admin 2025-08-12 15:29:17

Selected Answers: B


In ADVPN, spokes run the health checks (latency, jitter, loss) on their tunnels and send those results, embedded in control traffic, to the hub.
The hub doesn’t perform the measurements itself — it simply receives and displays them for each spoke tunnel.

In the output shown, the device is displaying health-check values for multiple tunnels, which means it’s acting as a hub, collecting embedded measurements from spokes. This matches option B exactly.
  • Mattia Bruno 2025-08-27 16:32:46
    What you said is right but this image is the same as the one on page 383, which explain how a spoke can view wan link embedded in the advpn shortcut sessions
  • Mattia Bruno 2025-08-27 16:39:19
    https://docs.fortinet.com/document/fortigate/7.4.0/new-features/637049/advpn-2-0-edge-discovery-and-path-management-7-4-2 diagnose sys sdwan advpn-session Diagnostic command run on local spoke to view remote spoke WAN link information and path manager shortcut path selection. The displayed name is the hostname or HA group name, if in HA.

JeanFrancois Bouchard 2025-08-23 05:20:03

Selected Answers: A


As per FCSS - SD-WAN 7.4 Architect Study Guide page: 383

Mattia Bruno 2025-08-27 16:39:37

Selected Answers: A


diagnose sys sdwan advpn-session
Diagnostic command run on local spoke to view remote spoke WAN link information and path manager shortcut path selection. The displayed name is the hostname or HA group name, if in HA.

san 2025-10-31 17:08:00

Selected Answers: B


at the end what s the correct one ? A or B ?
  • Brave-Dumps Admin 2025-10-31 18:04:25
    A Answers of sd-wan 7.4 on the website now are verified depend on it please
